Tube fittings are essential components used to connect, control, and direct the flow of fluids in
high-pressure and industrial piping systems. High-quality fittings ensure leak-free performance, corrosion
resistance, and long-term durability in demanding applications.

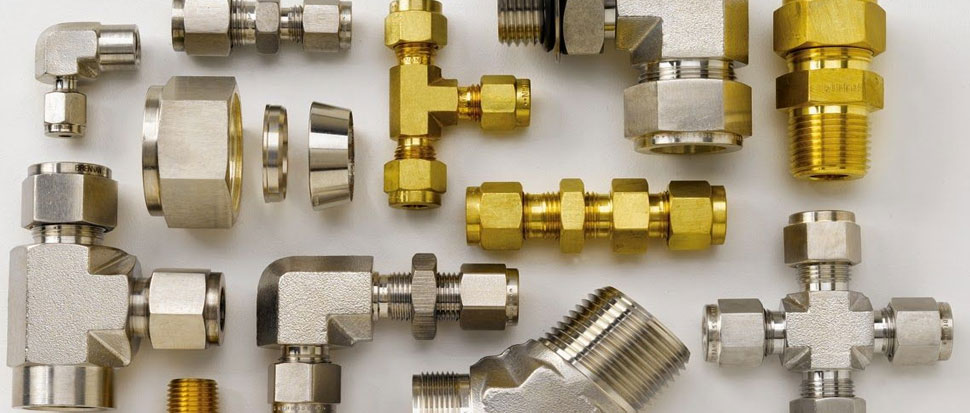

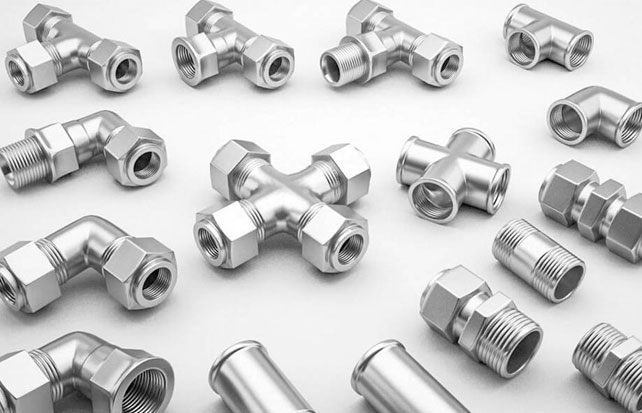

Here are some common types of Tube Fittings:
- Union Tee & Female Tee:
- Branch Tee & Run Tee:
- Male / Female Connector:
- Elbow:
- Bulkhead Union:
- Reducing Union:
- OD Cap / Plug:
- Manifold:
Used for branching and connecting tubes at 90° angles with robust sealing for high-pressure lines.
Designed to split or extend tube runs while maintaining consistent flow and pressure.
Provides secure tube-to-threaded connections in hydraulic and instrumentation systems.
Enables directional change of flow, typically 45° or 90°, without compromising sealing integrity.
Allows tube connections through panels or walls ensuring leak-free joint separation.
Connects tubes of different sizes while maintaining pressure performance and sealing.
Used to close or seal unused tube ends in fluid systems.
Enables distribution or combining of multiple tube lines in a compact configuration.
These tube fittings are available in Stainless Steel, Duplex Steel, Alloy Steel, Carbon Steel, Copper Alloys, Nickel Alloys, Monel, Inconel, and Hastelloy to suit different pressures and environmental conditions.
Tube Fittings Specifications
| Material | Size Range | Pressure Range | Standards / Grades | Special Notes |
|---|---|---|---|---|
| Stainless Steel | 1/16" to 2" | 3000 psi to 10000 psi | ASTM, ASME 182, A276, 304/304L, 316/316L, 316Ti, 321, 904L, 254SMO | High corrosion resistance |
| Duplex Steel | 1/16" to 2" | 3000 psi to 10000 psi | ASTM, ASME 182, A276, UNS S31803, S32750, S32760, S32205 | Superior strength & corrosion resistance |
| Carbon Steel | 1/16" to 2" | 3000 psi to 10000 psi | A105 | High durability |
| Alloy Steel | 1/16" to 2" | 3000 psi to 10000 psi | ASTM A182 – F5, F9, F11, F21, F22, F91 | Used in high-temperature systems |
| Copper Nickel / Nickel Alloys | 1/16" to 2" | 3000 psi to 10000 psi | C70600 (90/10), C71500 (70/30), C71640, UNS N02200, N02201 | Excellent seawater resistance |
| Monel / Inconel / Hastelloy | 1/16" to 2" | 3000 psi to 10000 psi | Monel N04400, N05500; Inconel N06600, N06601, N08800, N08810; Hastelloy N10276, N06022 | High-performance alloys for extreme conditions |
Tube Fittings Features
- High pressure and leak-proof performance
- Corrosion and temperature resistance
- Easy installation and maintenance
- Available in a wide range of materials
- Precision double-compression sealing
Types of Tube Fitting End Finishes
| Single Ferrule Finish | Double Ferrule Finish |
| Compression Type | Instrument Tube End Finish |
| Threaded End Finish | NPT / BSP End Finish |
| Socket Weld End | Butt Weld End |
| Polished Surface Finish | Bright Annealed Finish |
| Matte Surface Finish | Mirror-Polished Finish |
| Custom Machined Finishes | Custom Coated Finishes |
